Stretch Hooder Configuration Information

Machine size

MSK has over 7 different machine footprints to match your load sizes.  We have machines capabile of hooding a 30x30" and 48x120" load on the same machine.

Conveyor configurations

MSK manufacturers our own conveyor and we often provide many customized solutions and and down stream of our stretch hood packaging equipment.

Environment

We can accommodate challenges such as dusty environments; low ceiling heights; tight spaces; etc.

Some Layout Configurations

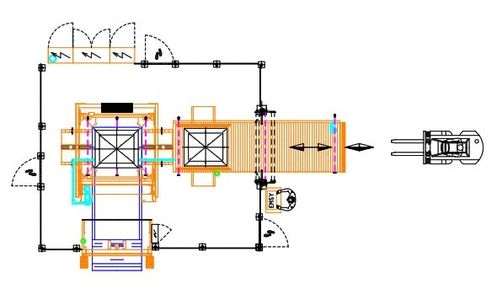

Sample, low-speed and low-cost stretch hood machine configuration

Stand-alone

Small footprint and low throughput requirements?  This stretch hooder layout minimizes equipment costs while still managing over 20 pal/hour capability.

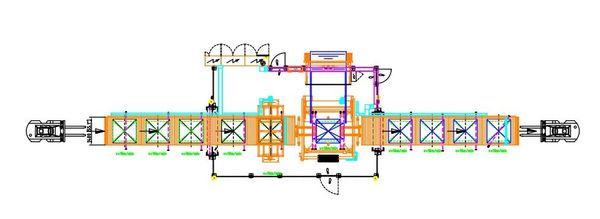

Stand-alone stretch hood machine configuration with accumulation conveyors

Stand-alone; straight through

Many customers will use a centralized MSK wrapping line because of its flexibility and speed potential.  MSK can provide as many conveyors up and downstream as needed.

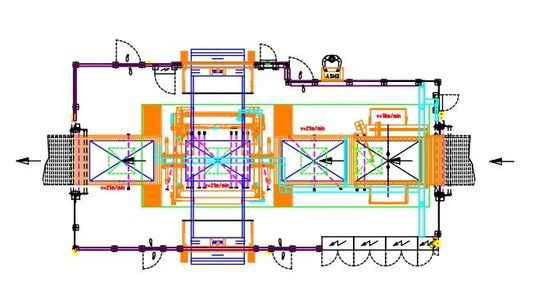

In-line stretch hood machine configuration with buffer position and 4 film rolls

High speed; in-line configuration

Giving a buffer position between load recognition and hooding allows for the machine to pre-make the bag before the unit arrives at the hooder.

Photo Gallery
